diatomite filter aid for waste water treatment

FOB Reference Price:Get Latest Price
US $300-700 / Metric Tons | 8 Metric Ton/Metric Tons (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
FeiFei
Model Number:
CDW
Product name:
diatomite filter aid
colour:
white
Material:
Celite diatomaceous earth diatomite powder
Permeability:
1.5-3.5 darcy
Median Particle Diameter:
24
SiO2:
90.8%
pH:
10.0
Moisture:
0.5%
Type:
Flux-calcined diatomaceous earth
Application:
waste water filtration, water treatment
SupplyAbility
SupplyAbility:
1000 Metric Ton/Metric Tons per Month
Packaging & Delivery
Packaging Details
25kg / ploywoven bag
Port
Shanghai or Ningbo
Lead Time :
20 days

diatomite filter aid for waste water treatment, waste water filtration



diatomite / diatomaceous earth filter aid for waste water filtration,  DE filter media for waste water treatment


The separation of solids from liquids, or Solid-Liquid-Separation (SLS) is one of the most widely used operations in industrial processing. The desired material may be either the liquid or the solid, depending on the finished product.IMG_20160315_102941.jpg

Color

White

Permeability(Darcy)

1.5-3.5

Sieve Analysis

+150 Mesh Screen Residue %

+325 Mesh Screen Residue %


6

33

Density (g/ml)

Wet bulk

Dry bulk


320

220

Median particle Diameter(microns)

24

PH (10% slurry)

10.0

Moisture (%)

0.5

Specific gravity

2.3

Acid Solubility %

3.0

Water Solubility %

0.5




Pb (lead), ppm

4.0

Arsenic (As), ppm

5.0

SiO2         %

90.8

Al2O3        %

4.0

Fe2O3        %

1.5

CaO          %

0.4

MgO         %

0.5

Other Oxides   %

2.5

Loss on Ignition %

0.5








   Diatomaceous earth filter aid for waste water filtration

IMG_20171101_151130IMG_20171101_150707



Diatomaceous earth  filter aids are light in weight, chemically inert, and form high porosity filter cakes to maintain free-flow of the liquid. Specifically, an efficient filter aid is characterized by the following:

The structure of the particles must be such that they will not pack together closely, but will form cakes that are 85% to 95% pore space. This not only permits higher initial flow rates, but also provides pore spaces to trap and contain the filterable solids while leaving a high percentage of channels open for flow.

 Diatomaceous earth filter aid for waste water filtration

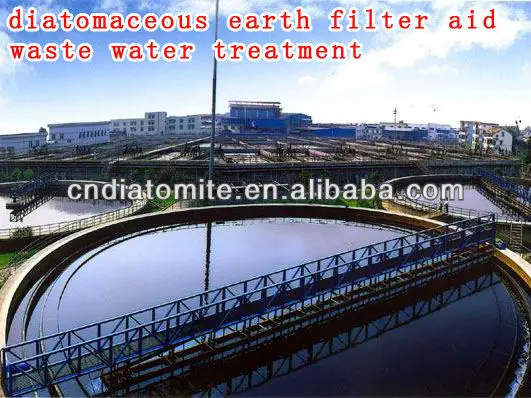

 As tighter and tighter restrictions are enacted on discharged water from industrial plants due to environmental concerns, there is a growing need for more effective industrial wastewater treatment methods.



Two key components of these treatment methods are mechanical (physical) separation and sludge dewatering.  The clarified water can then be recycled back into the manufacturing process or discharged safely.





Using of diatomite filter aids:
1. Condiment: monosodium glutamate, soy, vinegar, salad oil, colza oil, etc.
2. Beverage: beer, rat fee, yellow wine, fruit juice, wine, beverage syrupy, etc.
3. Pharmaceutical: antibiotic, vitamin, refined traditional Chinese medicine, filling for dentistry, cosmetics, etc.
4. Chemical products: organic acid, mineral acid, alkyd, oil paint, vinylite, etc.
5. Industrial oil products: lubricating oil, additives of lubricating oil, petroleum additive, trussed metal sheet oil, transformer oil, coal tar, etc.
6. Water treatment: daily waste water, industrial waste water, effluent treatment, swimming pool water, etc.
7. Sugar Industry: fruit syrup, glucose, starch sugar, sucrose, etc.





1264752985566_hz_myalibaba_web13_2879





Application Instructions:

  1. Preliminary Inspection:  Visually inspect the filter elements (particularly in the springtime) as torn or improperly fitted elements or fabric acan cause problems, and dirty or clogged elements will reduce the flow of water as well as cause short cycles.
  2. Precoat:  This procedure is used to coat or cake the filter elements with a thin layer of DE
    1. Thoroughly mix the proper amount of CD080 filter aid  (depending on package instructions and filter manufacturer instructions) in a bucket with water to form a slurry.
    2. Apply directly to pool's skimmer.

  3.   Backwashing & Cleaning:  Backwashing the DE filter involves reversing the flow and/or hand rinsing the filter elements. Proper maintenance and thorough cleaning of the filter are necessary for obtaing good filtration results.
